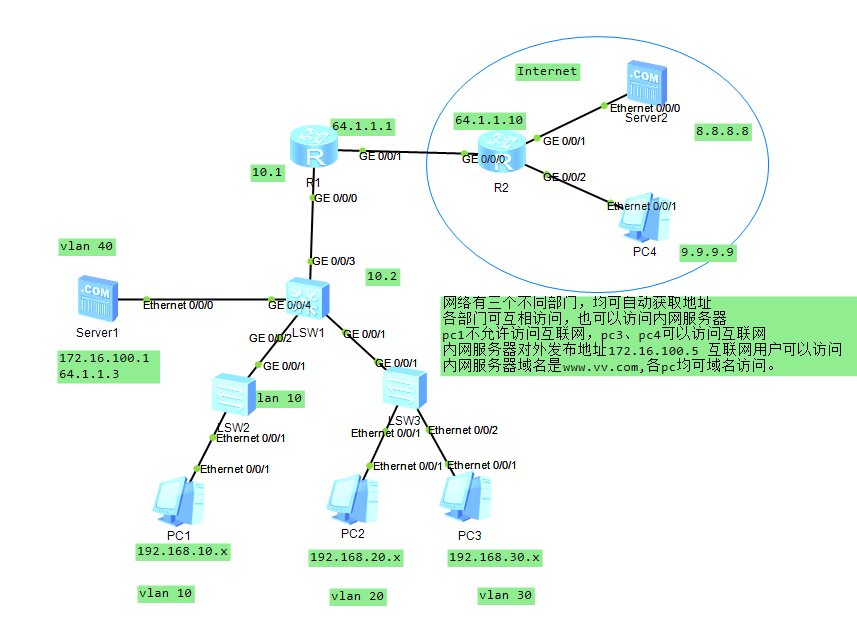

拓扑图

# 核心步骤

LSW1：

	vlan batch 10 20 30 40 100
	dhcp enable
	interface Vlanif10
	ip address 192.168.10.254 255.255.255.0
	dhcp select interface
	dhcp server dns-list 172.16.100.1
	interface Vlanif20
	ip address 192.168.20.254 255.255.255.0
	dhcp select interface
	dhcp server dns-list 172.16.100.1
	interface Vlanif30
	ip address 192.168.30.254 255.255.255.0
	dhcp select interface
	dhcp server dns-list 172.16.100.1
	interface Vlanif40
	ip address 172.16.100.254 255.255.255.0
	interface Vlanif100
	ip address 10.10.10.2 255.255.255.0
	interface GigabitEthernet0/0/1
	port link-type trunk
	port trunk allow-pass all
	interface GigabitEthernet0/0/2
	port link-type access
	port default vlan 10
	interface GigabitEthernet0/0/3
	port link-type access
	port default vlan 100
	interface GigabitEthernet0/0/4
	port link-type access
	port default vlan 40
	ip route-static 0.0.0.0 0.0.0.0 10.10.10.1

LSW3

	undo info-center enable
	vlan batch 20 30
	interface Ethernet0/0/1
	port link-type access
	port default vlan 20
	interface Ethernet0/0/2
	port link-type access
	port default vlan 30
	interface GigabitEthernet0/0/1
	port link-type trunk
	port trunk allow-pass all

R1

	nat address-group 1 64.1.1.5 64.1.1.5
	acl number 2000
	rule 5 permit source 192.168.0.0 0.0.255.255
	acl number 2001
	rule 5 deny source 192.168.10.0 0.0.0.255
	rule 10 permit
	interface GigabitEthernet0/0/0
	ip address 10.10.10.1 255.255.255.0
	traffic-filter inbound acl 2001
	interface GigabitEthernet0/0/1
	ip address 64.1.1.1 255.255.255.0
	nat outbound 2000 address-group 1
	nat server global 64.1.1.3 inside 172.16.100.1
	ip route-static 0.0.0.0 0.0.0.0 64.1.1.10
	ip route-static 172.16.100.0 255.255.255.0 10.10.10.2
	ip route-static 192.168.0.0 255.255.0.0 10.10.10.2

R2

	undo info-center enable
	interface GigabitEthernet0/0/0
	ip address 64.1.1.10 255.255.255.0
	interface GigabitEthernet0/0/1
	ip address 8.8.8.254 255.255.255.0
	interface GigabitEthernet0/0/2
	ip address 9.9.9.254 255.255.255.0
	ip route-static 172.16.100.0 255.255.255.0 64.1.1.1
	ip route-static 192.168.0.0 255.255.0.0 64.1.1.1

# 结果

测试 ping 8.8.8.8 正常
测试各 pc 域名 vv.com dns 解析正常
测试 pc 互通
测试 pc1 ping 8.8.8.8 被 acl 拦截
